1V301

Single union grey uPVC ball valve, BSP female threaded sockets, with free ball support. - EPDM seals. - PE ball seats.



Manufacturer	ASTORE
Description	Ball Valve for Irrigation 1V.301.160.00H
Part number	1V.301.160.00H

CAD 模型

询价

产品选择

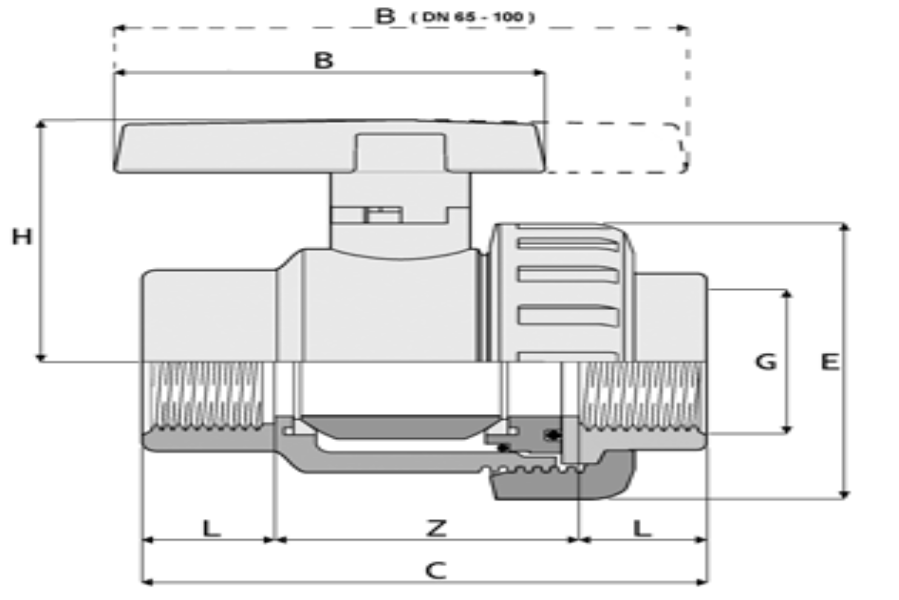

Index	Selector	Ref.	G	DN (mm)	L (mm)	Z (mm)	C (mm)	E (mm)	H (mm)	B (mm)	g (mm)	Box
1	1	1V.301.160.00H	3/8"	10	13	45	71	50	50	57	96	120
2	2	1V.301.200.00H	1/2"	15	17	40	74	50	50	57	105	120
3	3	1V.301.250.00H	3/4	20	19	48	86	59	55	66	160	80
4	4	1V.301.320.00H	1"	25	22	56	100	68	63	75	240	60
5	5	1V.301.400.00H	1 1/4"	32	24	66	114	80	76	90	355	30
6	6	1V.301.500.00H	1 1/2"	40	24	88	136	96	88	103	575	20
7	7	1V.301.630.00H	2"	50	29	104	162	116	102	121	960	10
8	8	1V.301.750.00LW	2 1/2"	65	33	144	210	168	138	225	2700	4
9	9	1V.301.900.00LW	3"	80	36	154	226	168	138	225	2800	4
10	10	1V.301.110.00LW	4"	100	42	188	272	210	171	280	4700	2
