1V322

True union grey uPVC ball valve, ISO Standard plain solvent weld sockets, with free ball support. - EPDM seals. - PE ball seats.



Manufacturer	ASTORE
Description	Ball valve for Irrigation 1V.322.160.00H
Part number	1V.322.160.00H

CAD 模型

询价

产品选择

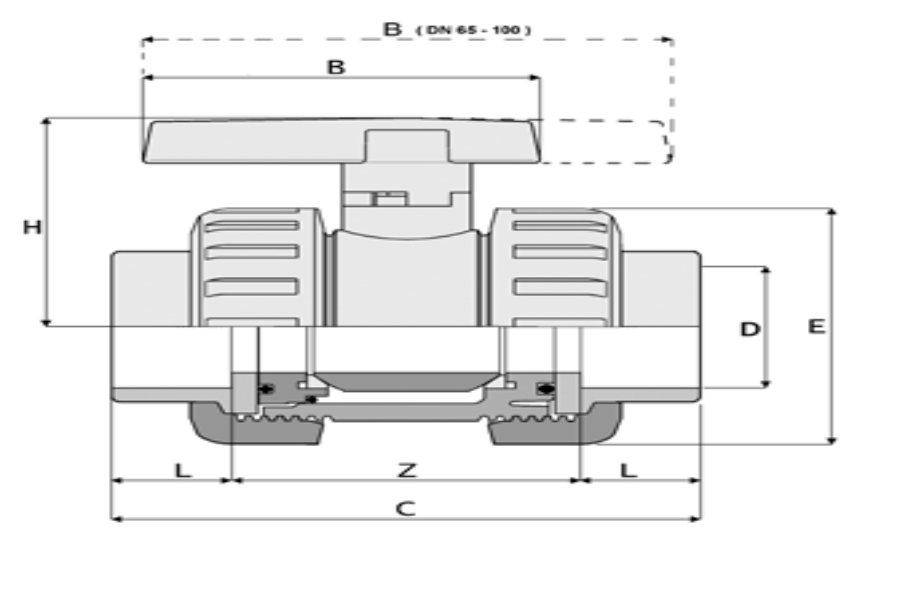

Index	Selector	Ref.	D (mm)	DN (mm)	L (mm)	Z (mm)	C (mm)	E (mm)	H (mm)	B (mm)	g (mm)	Box
1	1	1V.322.160.00H	16	10	14	47	75	50	50	57	125	120
2	2	1V.322.200.00H	20	15	16	48	80	50	50	57	130	120
3	3	1V.322.250.00H	25	20	19	57	95	59	55	66	205	70
4	4	1V.322.320.00H	32	25	22	64	108	68	63	75	300	50
5	5	1V.322.400.00H	40	32	26	72	124	80	76	90	450	30
6	6	1V.322.500.00H	50	40	31	84	146	96	88	103	710	20
7	7	1V.322.630.00H	63	50	38	96	172	116	102	121	1150	10
8	8	1V.322.750.00LW	75	65	44	142	230	168	138	225	3400	3
9	9	1V.322.900.00LW	90	80	51	142	244	168	138	225	3500	3
10	10	1V.322.110.00LW	110	100	61	162	284	210	171	280	5900	2
