1V421

True union grey uPVC spheric ball valve, BSP female threaded sockets, with fixed ball support. - EPDM seals. - PE ball seats.



Manufacturer	ASTORE
Description	Ball Valve for Water and Swimming pool 1V.421.016.00
Part number	1V.421.016.00

CAD 模型

询价

产品选择

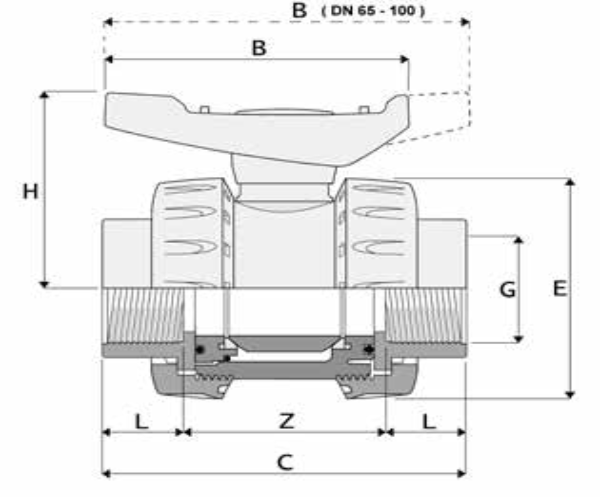

Index	Selector	Ref.	G	DN (mm)	L (mm)	Z (mm)	C (mm)	E (mm)	H (mm)	B (mm)	g (mm)	Box
1	1	1V.421.016.00	3/8"	10	13	56	82	53	51	66	150	90
2	2	1V.421.020.00	1/2"	15	17	56	90	53	51	66	145	90
3	3	1V.421.025.00	3/4"	20	19	55	93	62	59	77	225	60
4	4	1V.421.032.00	1"	25	22	66	110	71	66	88	320	40
5	5	1V.421.040.00	1 1/4"	32	24	79	127	84	77	102	515	22
6	6	1V.421.050.00	1 1/2"	40	24	83	131	98	87	117	735	15
7	7	1V.421.063.00	2"	50	29	103	161	117	105	140	1260	8
8	8	1V.421.075.00	2 1/2"	65	33	164	230	168	138	225	3400	3
9	9	1V.421.090.00	3"	80	36	172	244	168	138	225	3500	3
10	10	1V.421.110.00	4"	100	42	200	284	210	171	280	5900	2

联系供应商

ASTORE

Manufacturer of Manual valves, Compression fittings, Compression fittings, PVC pressure fittings

FIP - Formatura Iniezione Polimeri S.p.A.

FIP - Formatura Iniezione Polimeri S.p.A.
Localita’ Pian di Parata
16015 Casella
意大利
http://www.astore.it
