1V426

True union grey uPVC spheric ball valve, with PE100 SDR 11 spigots, with fixed ball support. - EPDM seals. - PE ball seats.



Manufacturer	ASTORE
Description	Ball Valve for Water and Swimming pool 1V.426.020.00
Part number	1V.426.020.00

CAD 模型

询价

产品选择

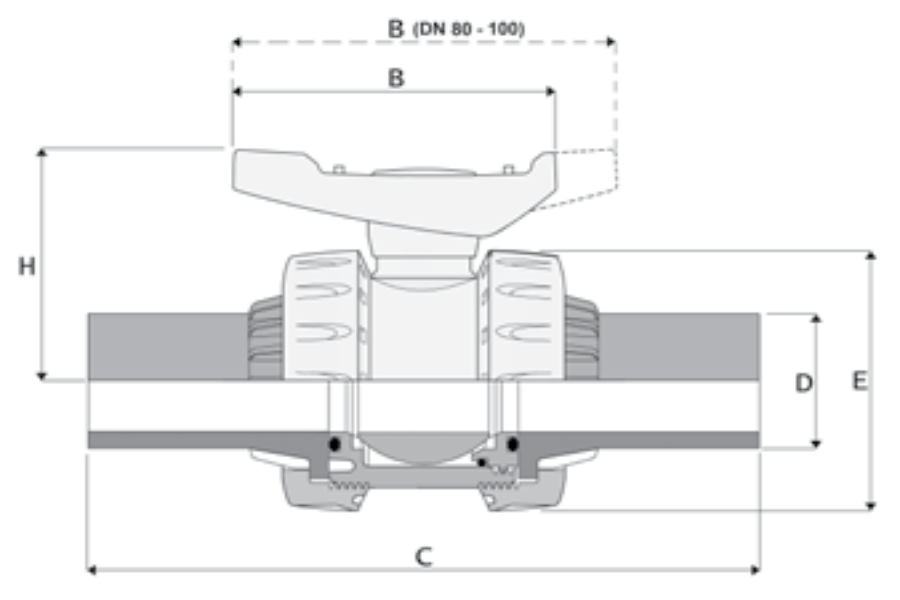

Index	Selector	Ref.	D (mm)	DN (mm)	C (mm)	E (mm)	H (mm)	B (mm)	g (mm)
1	1	1V.426.020.00	20	15	154	53	51	66	155
2	2	1V.426.025.00	25	20	186	62	59	77	230
3	3	1V.426.032.00	32	25	199	71	66	88	330
4	4	1V.426.040.00	40	32	217	84	77	102	530
5	5	1V.426.050.00	50	40	236	98	87	117	780
6	6	1V.426.063.00	63	50	268	117	105	140	1330
7	7	1V.426.090.00	90	80	368	168	151	225	3750
8	8	1V.426.110.00	110	100	404	210	178	280	6300
