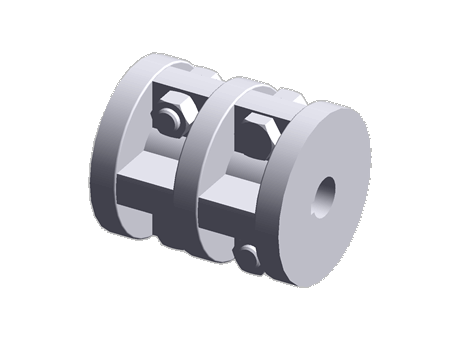

couplings DIN 115

Standard	DIN 115
Description	couplings DIN 115 - Bore 20 mm - with keywey
Part number	DIN 115 w - d1 20

CAD 模型

产品选择

Index	Selector	bore	max. torque (N.m)	outer diameter (mm)	total length (mm)
1	1	Bore 20 mm - with keywey	25	85	100
2	2	Bore 20 mm - without keywey	25	85	100
3	3	Bore 25 mm - with keywey	40	100	130
4	4	Bore 25 mm - without keywey	40	100	130
5	5	Bore 30 mm - with keywey	60	100	130
6	6	Bore 30 mm - without keywey	60	100	130
7	7	Bore 35 mm - with keywey	80	110	160
8	8	Bore 35 mm - without keywey	80	110	160
9	9	Bore 40 mm - with keywey	100	110	160
10	10	Bore 40 mm - without keywey	100	110	160
11	11	Bore 45 mm - with keywey	125	120	190
12	12	Bore 45 mm - without keywey	125	120	190
13	13	Bore 50 mm - with keywey	150	130	190
14	14	Bore 50 mm - without keywey	150	130	190
15	15	Bore 55 mm - with keywey	500	150	220
16	16	Bore 60 mm - with keywey	850	150	220
17	17	Bore 65 mm - with keywey	1250	170	250
18	18	Bore 70 mm - with keywey	1700	170	250
19	19	Bore 80 mm - with keywey	2500	190	280
20	20	Bore 90 mm - with keywey	3800	215	310
21	21	Bore 100 mm - with keywey	5400	250	350
