Hand Wheels - Duroplast - with Revolving Handle - Stainless Hub - Pilot Hole - Metric

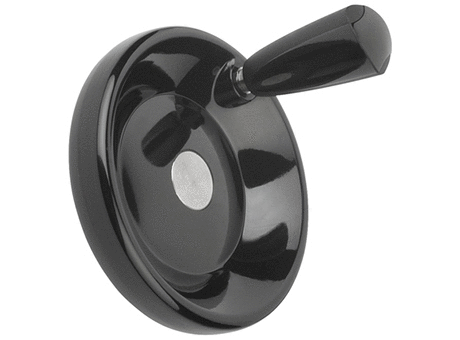

Duroplast Hand Wheels with Revolving Handles (06287)

Manufacturer	Fixtureworks

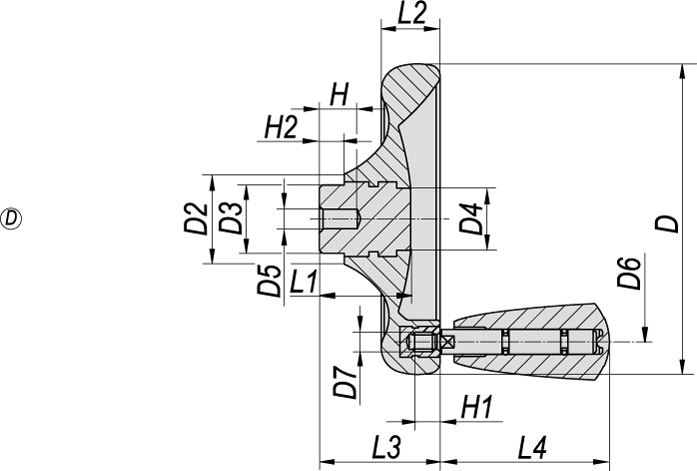

Description	Duroplastic Handwheel w/ Handle - SS Hub - 100mm Dia - 6mm Bore
Part Number	06287-2100X06
D Outside Diameter mm	100
D2 mm	29
D3 mm	22
D4 mm	20
D5 Pilot Hole mm	6
D6 mm	79

D7 mm	M6
H mm	12
H1 mm	9
H2 mm	8
L1 mm	29.5
L2 mm	19.0
L3 mm	39
L4 mm	54.7

CAD 模型

询价

产品选择

Index	Selector	Part Number	D Outside Diameter mm	D2 mm	D3 mm	D4 mm	D5 Pilot Hole mm	D6 mm	D7 mm	H mm	H1 mm	H2 mm	L1 mm	L2 mm	L3 mm	L4 mm
1	1	06287-2100X06	100	29	22	20	6	79	M6	12	9	8	29.5	19.0	39	54.7
2	2	06287-2125X08	125	34	26	21	8	101	M6	15	9	8	34.0	24.0	46	54.7
3	3	06287-2140X08	140	39	30	25	8	110	M8	16	12	8	38.5	27.0	52	82.2
4	4	06287-2160X10	160	43	33	30	10	128	M8	20	12	8	41.3	30.1	57	82.2

商品描述

Made from black duroplast plastic, these solid disc hand wheels offer strength, durability and attractive appearance. The surface finish is deburred and has a high polish finish. They are furnished with a black duroplastic revolving machine handle. The stainless steel hubs have a natural finish. The pilot hole provides a centered bore to facilitate custom mounting configurations.
