EH 22880. Expander® Sealing Plugs

Manufacturer	Erwin Halder KG
Description	EH 22880.0004 Expander® Sealing Plugs, body from case-hardened steel
Reference number	EH 2288.004
Material	Body: case-hardened steel, zink-coating, yellow passivated
Mass	0.4 g

CAD 模型

询价

产品选择

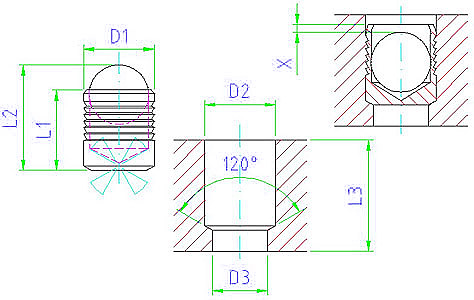

Index	Selector	Reference number	Finish	D1 (mm)	L1 (mm)	L2 (mm)	D2 +0,1 (mm)	D3 max. (mm)	L3 min. (mm)	X +/-0,2 (mm)	S (mm)	G (g)
1	1	EH 2288.004	Body from case-hardened steel	4	4	5.2	4	3.3	3.8	0.2	1.5	0.4
2	2	EH 2288.005	Body from case-hardened steel	5	5.5	7	5	4.3	5.3	0.4	2	0.7
3	6	EH 2288.006	Body from case-hardened steel	6	6.5	8.6	6	5.3	6.3	0.4	2.5	1.2
4	7	EH 2288.007	Body from case-hardened steel	7	7.5	10.1	7	6.4	7.3	0.4	3	1.9
5	8	EH 2288.008	Body from case-hardened steel	8	8.5	11.7	8	7.4	8.3	0.3	3.5	3.1
6	9	EH 2288.009	Body from case-hardened steel	9	10	13.7	9	8.4	9.8	0.4	4	4.1
7	10	EH 2288.010	Body from case-hardened steel	10	11	15.2	10	9.4	10.8	0.4	4.5	6
8	11	EH 2288.012	Body from case-hardened steel	12	13	18	12	10.6	12.8	0.4	5.5	9.4
9	12	EH 2288.014	Body from case-hardened steel	14	15	20.8	14	12.7	14.5	0.4	6.35	14.4
10	13	EH 2288.016	Body from case-hardened steel	16	17	23.7	16	14.7	16.5	0.6	7	21.7
11	3	EH 2288.018	Body from case-hardened steel	18	19	26.3	18	16.7	18.5	0.6	8	32.4
12	4	EH 2288.020	Body from case-hardened steel	20	22	30.5	20	18.7	21.5	0.8	9	44.7
13	5	EH 2288.022	Body from case-hardened steel	22	25	34.2	22	20.7	24.5	0.8	10	59.3
14	14	EH 2288.053	Body from stainless steel	3	3.6	4.6	3	2.2	3.4	0.4	1.2	0.2
15	15	EH 2288.054	Body from stainless steel	4	4	5.2	4	3.3	3.8	0.2	1.5	0.4
16	20	EH 2288.055	Body from stainless steel	5	5.5	7	5	4.3	5.3	0.4	2	0.7
17	21	EH 2288.056	Body from stainless steel	6	6.5	8.6	6	5.3	6.3	0.4	2.5	1.2
18	22	EH 2288.057	Body from stainless steel	7	7.5	10.1	7	6.4	7.3	0.4	3	1.9
19	23	EH 2288.058	Body from stainless steel	8	8.5	11.7	8	7.4	8.3	0.3	3.5	2.8
20	24	EH 2288.059	Body from stainless steel	9	10	13.7	9	8.4	9.8	0.4	4	4.1
21	25	EH 2288.060	Body from stainless steel	10	11	15.2	10	9.4	10.8	0.4	4.5	5.5
22	26	EH 2288.062	Body from stainless steel	12	13	18	12	10.6	12.8	0.4	5.5	9.4
23	27	EH 2288.064	Body from stainless steel	14	15	20.8	14	12.7	14.5	0.4	6.35	14.4
24	16	EH 2288.066	Body from stainless steel	16	17	23.7	16	14.7	16.5	0.6	7	21.7
25	17	EH 2288.068	Body from stainless steel	18	19	26.3	18	16.7	18.5	0.6	8	32.4
26	18	EH 2288.070	Body from stainless steel	20	22	30.5	20	18.7	21.5	0.8	9	44.7
27	19	EH 2288.072	Body from stainless steel	22	25	34.2	22	20.7	24.5	0.8	10	59.3
