GN 583 Steel Safety Swivel Lifting Eye Nuts

Manufacturer	JW Winco
Description	Steel Safety Swivel Lifting Eye Nuts
Part Number	583-M10
Thread d1	M 10
d2	16
d3	25
d4	28
d5	25

h	45
k1	8.5
k2	47
Length	14
A/F	12
Nominal load (WLL) in metric tons	0,40 t [4,0 kN]
Weight	0.242

CAD 模型

询价

产品选择

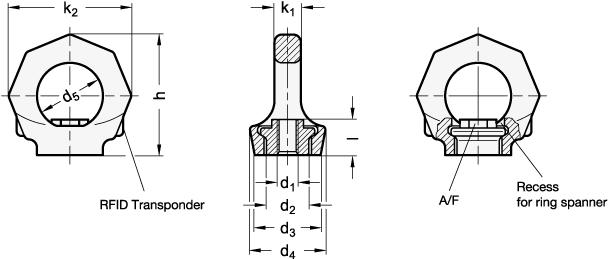

Index	Selector	Part Number	Description	Thread d1	d2	d3	d4	d5	h	k1	k2	Length	A/F	Nominal load (WLL) in metric tons	Weight
1	1	583-M10	Steel Safety Swivel Lifting Eye Nuts	M 10	16	25	28	25	45	8.5	47	14	12	0,40 t [4,0 kN]	0.242
2	2	583-M12	Steel Safety Swivel Lifting Eye Nuts	M 12	20	30	34	30	55	10	56	17	14	0,75 t [7,5 kN]	0.352
3	3	583-M16	Steel Safety Swivel Lifting Eye Nuts	M 16	22	35.5	40	35	66	14	65	21	19	1,50 t [15,0 kN]	0.661
4	4	583-M20	Steel Safety Swivel Lifting Eye Nuts	M 20	29	40	50	40	74	16	75	23	24	2,30 t [23,0 kN]	0.925
5	5	583-M24	Steel Safety Swivel Lifting Eye Nuts	M 24	35	50	60	48	90	19	90	29	30	3,20 t [32,0 kN]	1.697
6	6	583-M30	Steel Safety Swivel Lifting Eye Nuts	M 30	44	60	75	60	112	24	112	34	36	4,50 t [45,0 kN]	3.262
7	7	583-M8	Steel Safety Swivel Lifting Eye Nuts	M 8	16	25	28	25	45	8.5	47	14	12	0,30 t [3,0 kN]	0.222

商品描述

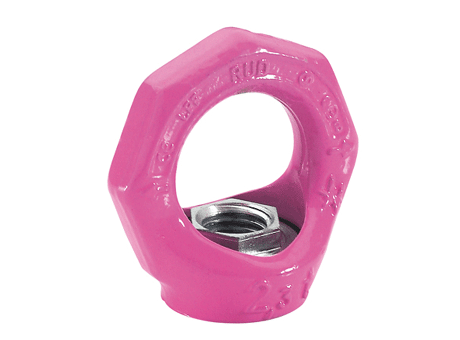

The nut of GN 583 safety swivel lifting eye nuts is captively mounted in the ring housing, yet rotates freely. This allows the direction of the load to be adjusted and prevents unintentional loosening or overtightening (as it is possible with DIN 582 lifting eye nuts).

These lifting eye nuts offer a high load carrying capacity and are tested to meet high safety standards in all load directions (safety factor 4).

The nominal values for load capacity in the table are for the most disadvantageous loading conditions listed, and are also clearly marked on the ring.

GN 583 lifting eye nuts comply with Machinery Directive 2006/42/EG and are BG tested.

The integrated RFID transponder is used to clearly identify the lifting gear, e.g. during the prescribed regular inspection.
