Female NPT Threaded Flanges - PTFE

Manufacturer	Micromold Products, Inc.
Description	Female NPT Threaded Flanges - PTFE - Pipe Size 1/2 inch
Part number	F-FL04
Nominal Pipe Size (inch)	1/2
Outer diameter (inch)	3-1/2
Weight (lb.)	0.5
Material	PTFE
Thickness (inch)	3/4

CAD 模型

询价

产品选择

模型复杂程度

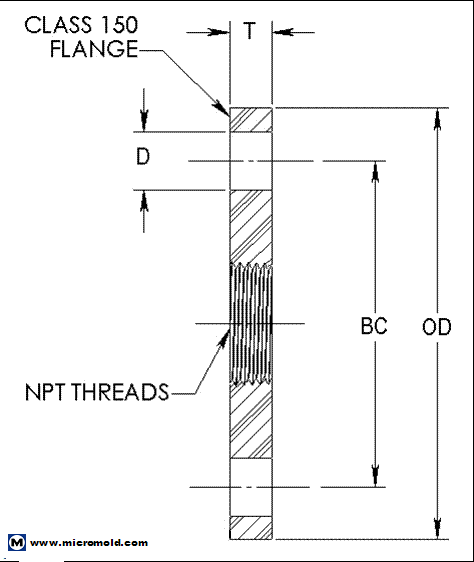

Index	Selector	Item #	Nominal Pipe Size (inch)	OD (inch)	T (inch)	No. of Bolt Holes	D (inch)	BC (inch)	Weight (lb.)	Material
1	1	F-FL04	1/2	3-1/2	3/4	4	5/8	2-3/8	0.5	PTFE
2	2	F-FL06	3/4	3-7/8	3/4	4	5/8	2-3/4	0.7	PTFE
3	3	F-FL08	1	4-1/4	3/4	4	5/8	3-1/8	0.8	PTFE
4	4	F-FL10	1-1/4	4-5/8	1	4	5/8	3-1/2	1.05	PTFE
5	5	F-FL12	1-1/2	5	1	4	5/8	3-7/8	1.4	PTFE
6	6	F-FL16	2	6	1	4	3/4	4-3/4	1.9	PTFE
7	7	F-FL20	2-1/2	7	1-1/4	4	3/4	5-1/2	3.13	PTFE
8	8	F-FL24	3	7-1/2	1-1/2	4	3/4	6	3.6	PTFE
9	9	F-FL32	4	9	1-1/2	8	3/4	7-1/2	6.5	PTFE

商品描述

Product Notes:

Other flange materials available, contact factory.

文件

Datasheet

联系供应商

Micromold Products, Inc.

Since 1954, Micromold Products has manufactured a broad line of corrosion resistant plastic products for the process industries. Micromold specializes in standard and custom products made from PTFE, PFA, & FEP and such other high performance plastics as Kynar, polypropylene, PEEK, nylon, Kel-F, and UHMW polyethylene. As one of the earliest processors of PTFE resins and fabricators of PTFE products, Micromold has accumulated a wealth of know-how in the field. It has developed a number of proprietary manufacturing processes, with especially sophisticated capabilities in the manufacture of PTFE and PFA machined parts and weldments.
