MCX

Active

Manufacturer	Molex

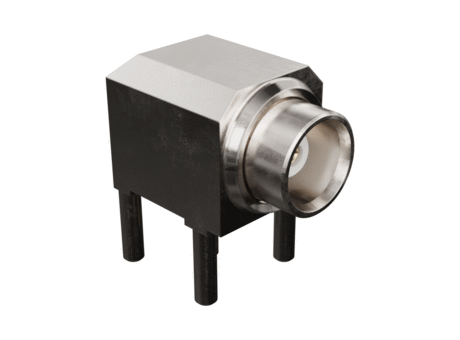

Description	MCX Jack, Right-Angle, PCB Receptacle, Through Hole, Die Cast Housing with Brass Insert, Tin (Sn) Plated, 80 Pieces Per Tray, 50 Ohms
Part number	733660030

CAD 模型

询价

产品选择

Index	Selector	Part number	Description	Housing material & finish	Front body material & finish	Center contact material & finish	Insulator material & finish
1	1	733660030	MCX Jack, Right-Angle, PCB Receptacle, Through Hole, Die Cast Housing with Brass Insert, Tin (Sn) Plated, 80 Pieces Per Tray, 50 Ohms	Zinc alloy, plated tin	Brass, plated nickel	Beryllium copper, plated gold	Teflon
2	2	733660032	MCX Jack, Right-Angle, PCB Receptacle, Through Hole, Die Cast Housing with Brass Insert, Nickel (Ni) Plated Outer Contact, Tin (Sn) Plated Housing, Tape and Reel, 50 Ohms	Zinc alloy, plated tin	Brass, plated gold	Beryllium copper, plated gold	Teflon
3	3	733660033	MCX Jack, Right-Angle, PCB Receptacle, Through Hole, Die Cast Housing with Brass Insert, Nickel (Ni) Plated Outer Contact, Tin (Sn) Plated Housing, 20 Pieces Per Tray, 50 Ohms	Zinc alloy, plated tin	Brass, plated nickel	Beryllium copper, plated gold	Teflon
4	4	733660035	MCX Jack, Right-Angle, PCB Receptacle, Through Hole, Die Cast Housing with Brass Insert, Nickel (Ni) Plated Outer Contact, Tin (Sn) Plated Housing, One Piece Per Bag, 50 Ohms	Zinc alloy, plated tin	Brass, plated nickel	Beryllium copper, plated gold	Teflon
5	5	733660036	MCX Jack, Right-Angle, PCB Receptacle, Through Hole, Die Cast Housing with Brass Insert, Gold (Au) Plated Outer Contact, Tin (Sn) Plated Housing, 54 Pieces Per Tray, 50 Ohms	Zinc alloy, plated tin	Brass, plated gold	Beryllium copper, plated gold	Teflon

文件

Drawing
