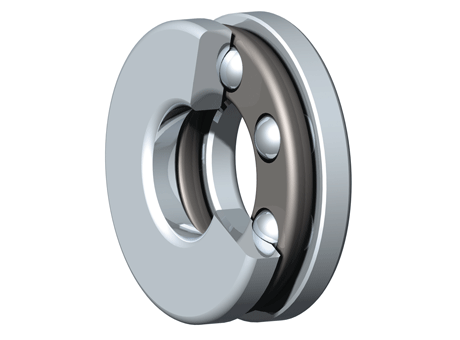

Axial deep groove ball bearings, metric dimensions of series B

Manufacturer	Myonic GmbH
Description	Axial deep groove ball bearings, metric dimensions of series B
Manufacturer Part Number	B 308X
Product Page	https://myonic.com/produkte/

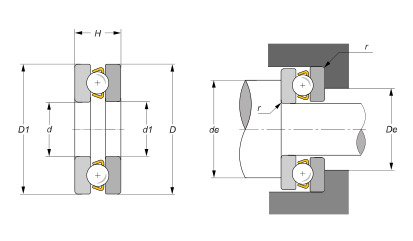

d1 [mm]	3.2
D1 [mm]	7.8
de min [mm]	6

De max [mm]	5
r max	0.10
n Max 1/min	15000
Ball set n x Ø [mm]	6 x 1.588
Basic load dynamic C	783
Basic load static Co	676

CAD 模型

询价

产品选择

Index	Selector	Manufacturer Part Number	Description	Product Page	d1 [mm]	D1 [mm]	de min [mm]	De max [mm]	r max	n Max 1/min	Ball set n x Ø [mm]	Basic load dynamic C	Basic load static Co
1	1	B 308X	Axial deep groove ball bearings, metric dimensions of series B	myonic.com	3.2	7.8	6	5	0.10	15000	6 x 1.588	783	676
2	2	B 410X	Axial deep groove ball bearings, metric dimensions of series B	myonic.com	4.2	9.8	7.5	6.5	0.10	15000	6 x 1.588	728	676
3	3	B 512X	Axial deep groove ball bearings, metric dimensions of series B	myonic.com	5.2	11.8	9	8	0.10	13000	8 x 1.588	832	901
4	4	B 614X	Axial deep groove ball bearings, metric dimensions of series B	myonic.com	6.2	13.8	10.5	9.5	0.15	10000	7 x 2.381	1657	1702
5	5	B 717X	Axial deep groove ball bearings, metric dimensions of series B	myonic.com	7.2	16.8	13	11	0.15	10000	8 x 2.778	2378	2663
6	6	B 819X	Axial deep groove ball bearings, metric dimensions of series B	myonic.com	8.2	18.8	14.5	12.5	0.25	8000	8 x 3.175	3046	3493
7	7	B 920X	Axial deep groove ball bearings, metric dimensions of series B	myonic.com	9.2	19.8	15.5	13.5	0.25	8000	8 x 3.175	2981	3692

文件

myonic.com

联系供应商

myonic GmbH

myonic is a world-leading supplier of miniature and precision ball bearings, cylindrical roller bearings and system solutions for advanced technology. As a part of the Japanese MinebeaMitsumi Grouip we service and supply our international customers in medical engineering, aerospace as well as machine tool manufacture from our location Leutkirch im Allgäu.

myonic GmbH

myonic GmbH
Steinbeisstraße 4
88299 Leutkirch
德国
www.myonic.com
info@myonic.com
