Basic ejectors SBP HV/HF with Plastic Body



Manufacturer	SCHMALZ
Description	Basic ejector
Part number	10.02.01.01953
Selection	SBP HF 2 03 7 KU
Omniclass number	23.27.57.17

CAD 模型

询价

产品选择

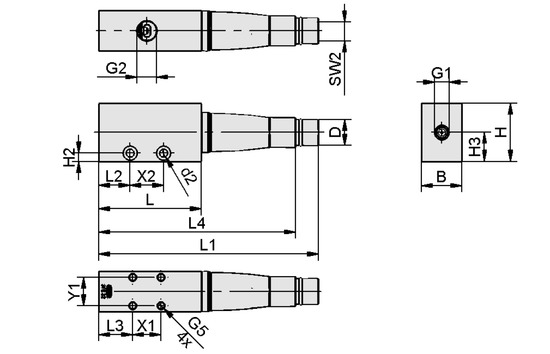

Index	Selector	Type	Width B (mm)	Diameter d2 (mm)	Diameter D (mm)	Thread Diameter G1 (mm)	Thread Diameter G2	Thread Diameter G5	Heigth H (mm)	Heigth H2 (mm)	Heigth H3 (mm)	Length L (mm)	Length L1 (mm)	Length L2 (mm)	Length L3 (mm)	Length L4 (mm)	Width across flats SW2 (mm)	Length X1 (mm)	Length X2 (mm)	Length Y1 (mm)
1	1	SBP HF 2 03 7 KU	19	4.2	6	G1/8-IG	G1/8-IG	M4-IG	25	5	12.5	36.5	47.5	10	13.5	-	4	12	19	12
2	2	SBP HF 2 06 13 KU	23	4.2	14.2	G1/8-IG	G1/4-IG	M4-IG	33	5.5	16.5	46.5	80.5	14	16.5	64.5	8	14	19	14
3	3	SBP HF 3 06 13 KU	23	4.2	14.2	G1/8-IG	G1/4-IG	M4-IG	33	5.5	16.5	46.5	99	14	16.5	83	8	14	19	14
4	4	SBP HF 2 13 22 KU	31.5	6.2	20	G1/4-IG	G3/8-IG	M6-IG	45	6.5	22.5	80	131	24.5	26.5	113	12	22	26	22
5	5	SBP HF 3 13 22 KU	31.5	6.2	20	G1/4-IG	G3/8-IG	M6-IG	45	6.5	22.5	80	171	24.5	26.5	153	14	22	26	22
6	6	SBP HV 2 04 7 KU	19	4.2	6	G1/8-IG	G1/8-IG	M4-IG	25	5	12.5	36.5	47.5	10	13.5	-	4	12	19	12
7	7	SBP HV 2 07 13 KU	23	4.2	14.2	G1/8-IG	G1/4-IG	M4-IG	33	5.5	16.5	46.5	80.5	14	16.5	64.5	8	14	19	14
8	8	SBP HV 3 07 13 KU	23	4.2	14.2	G1/8-IG	G1/4-IG	M4-IG	33	5.5	16.5	46.5	99	14	16.5	83	8	14	19	14
9	9	SBP HV 2 16 22 KU	31.5	6.2	20	G1/4-IG	G3/8-IG	M6-IG	45	6.5	22.5	80	131	24.5	26.5	113	12	22	26	22
10	10	SBP HV 3 16 22 KU	31.5	6.2	20	G1/4-IG	G3/8-IG	M6-IG	45	6.5	22.5	80	171	24.5	26.5	153	14	22	26	22
