Sealing Profiles DI-PROF



Manufacturer	SCHMALZ
Description	Sealing profile
Part number	10.01.01.10554
Selection	DI-PROF 5.5x8 2K-MOS-20

CAD 模型

询价

产品选择

Index	Selector	Type	Length B [mm]	Length B1 [mm]	Length B2 [mm]	Length B3 [mm]	Length B4 [mm]	Height H [mm]	Height H1 [mm]	Height H2 [mm]	Height H3 [mm]	Height H4 [mm]

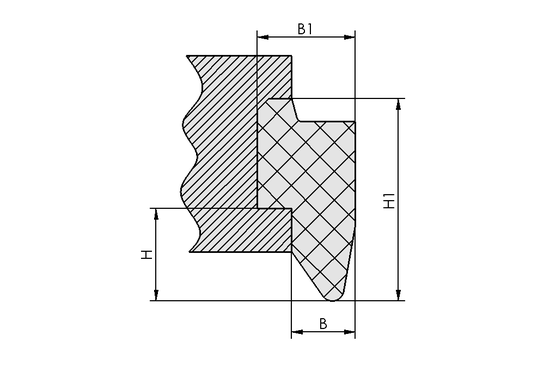

1	1	DI-PROF 5.5x8 2K-MOS-20	5.5	8.5	-	-	-	8	17.5	-	-	-

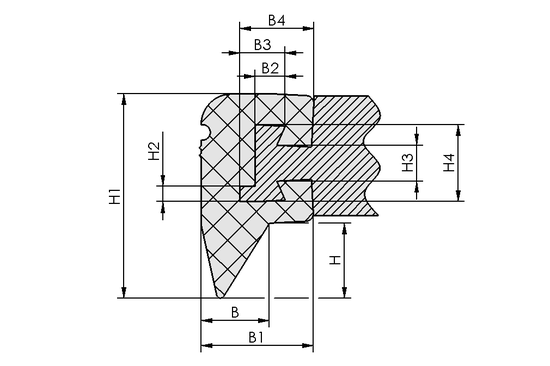

2	2	DI-PROF 9x9.7 2K-MOS-20	9	14.5	3.9	5.9	9.6	9.7	26.5	2	4.7	10
