Vacuum Gauge VAM-D electronic

CAD 模型

询价

产品选择

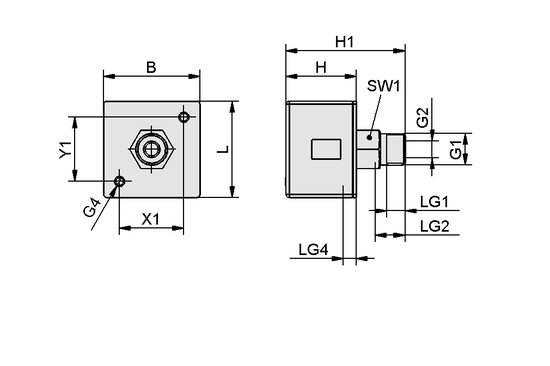

Index	Selector	Type	Width B [mm]	Thread Diameter G1	Thread Diameter G2	Thread Diameter G4	Height H [mm]	Height H1 [mm]	Length L [mm]	Length LG1 [mm]	Length LG2 [mm]	Length LG4 [mm]	Width across flats SW1 [mm]	Length X1 [mm]	Length Y1 [mm]
1	1	VAM-D 30x30 VP10 G1/8-AG	30	G1/8''-AG	M5-IG	M3-IG	21.8	37	30	5.6	9.3	4	12	20	20
2	2	VAM-D 30x30 VP10 G1/8-AG SET	30	G1/8''-AG	M5-IG	M3-IG	21.8	37	30	5.6	9.3	4	12	20	20
