Vacuum Switch VS-V-PM/EM-ST

CAD 模型

询价

产品选择

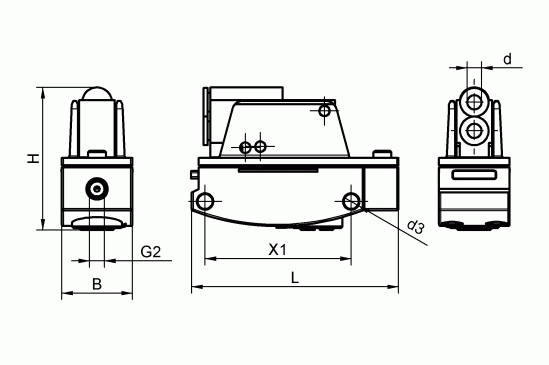

Index	Selector	Type	Width B [mm]	Width B2 [mm]	Diameter d [mm]	Diameter d3 [mm]	Connecting thread G2	Height H [mm]	Height H2 [mm]	Height X1 [mm]	Length L [mm]
1	1	VS-V-PM-NC	19.8	-	4	4.2	M5-IG	40	-	41	58.2
2	2	VS-V-PM-NO	19.8	-	4	4.2	M5-IG	40	-	41	58.2
3	3	VS-V-EM-ST	19.8	4.8	-	4.2	M5-IG	40	0.5	41	58.2
