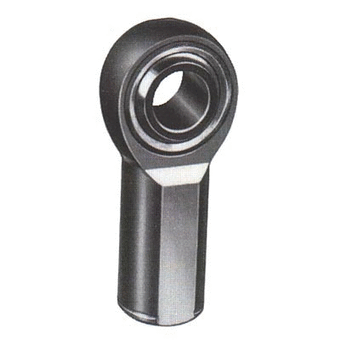

Aurora Bearing MW-T & MG-T Series Female Rod Ends (PTFE) Lined - General Purpose - Precision - Self-Lubricating - MW-12T

Aurora Bearing


Manufacturer The Timken Company
Description Aurora Bearing MW-T & MG-T Series Female Rod Ends (PTFE) Lined - General Purpose - Precision - Self-Lubricating, Ball Bore .7500 in - MW-12T
Manufacturer Part Number MW-12T
Timken Engineering Tools https://www.timken.com/engineering-tools/
Product Page https://cad.timken.com/keyword/all-product-types?key=all&keyword=MW-12T&SchType=2
Thread Type Right Hand

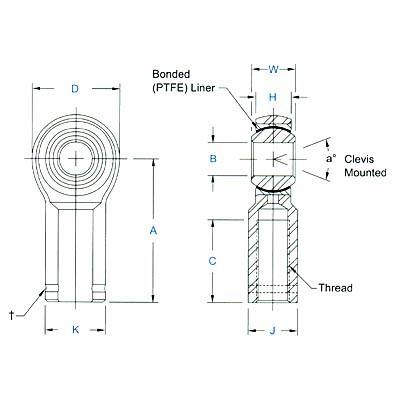

B - Ball Bore (in) .7500
W - Ball Width (in) .875
H - Head Width (in) .687
A - Base to Center (in) 2.875
D - Head Diameter (in) 1.750
C - Thread Depth (in) 1.750
Thread Size 3/4-16
Ultimate Radial Static Load Capacity (lbs) 11,518
CAD 模型
询价
请确保已安装此软件。

产品选择

商品描述

Body - Low carbon steel - protective coated for corrosion resistance. Size 16 standard series body is alloy steel not heat treated.
Ball - Alloy steel - heat treated - hard chrome plated.
Race - Low carbon steel - protective coated for corrosion resistance - PTFE lined.
Left-hand threaded units have an identification groove near end of shank.
Studded configuration available upon request. Specify by adding suffix "S". Ex.: MW-8TS.
