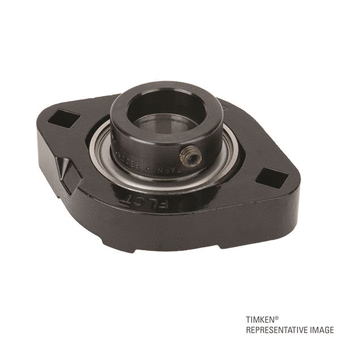

Fafnir® Two-Bolt Flanged Mounted Bearings Eccentric Locking Collar - FLCT1 1/4 S


Manufacturer The Timken Company
Description Fafnir® Two-Bolt Flanged Mounted Bearings Eccentric Locking Collar, Shaft Size 1.2500 in - FLCT1 1/4 S
Manufacturer Part Number FLCT1 1/4 S
Timken Engineering Tools https://www.timken.com/engineering-tools/
Product Page https://cad.timken.com/keyword/all-product-types?key=all&keyword=FLCT1 1/4 S&SchType=2
Shaft Size d (in) 1.2500
Shaft Size d (mm) 31.8
Housing Width A (in) 0.813
Housing Width A (mm) 20.6
Static Load Rating (lbf) 2530
Static Load Rating (N) 11300
Dynamic Load Rating (lbf) 4850
Dynamic Load Rating (N) 21600
Seal Type Molded Shroud
Housing Construction Two-Bolt Flange
