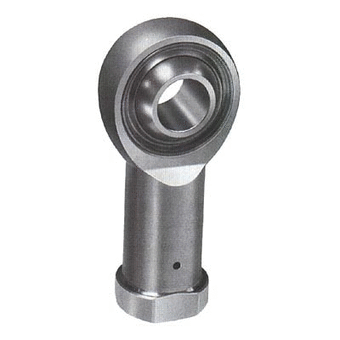

Aurora Bearing ASW-T & ASG-T Female Rod Ends SAE Series AS81935/2 (Right Hand) & AS81935/2 (Left Hand) - ASW-14T

Aurora Bearing


Manufacturer The Timken Company
Description Aurora Bearing ASW-T & ASG-T Female Rod Ends SAE Series AS81935/2 (Right Hand) & AS81935/2 (Left Hand), Ball Bore .8750 in - ASW-14T
Manufacturer Part Number ASW-14T
Note Effective August 21st, 2023, the Naval Air Warfare Center Aircraft Division (NAWCAD) has disapproved Timken Aurora’s qualification status for SAE-AS81820 and SAE-AS81935 specifications.  Timken Aurora is working diligently to get requalified.
Timken Engineering Tools https://www.timken.com/engineering-tools/
Product Page https://cad.timken.com/keyword/all-product-types?key=all&keyword=ASW-14T&SchType=2
Thread Type Right Hand

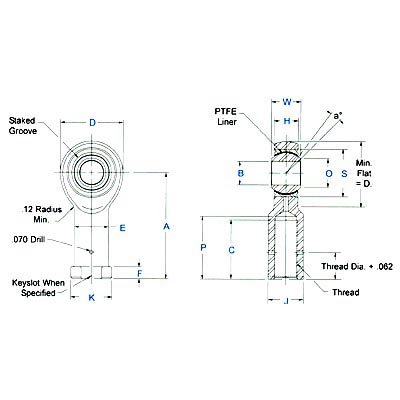

B - Ball Bore (in) .8750
W - Ball Width (in) .875
H - Head Width (in) .765
A - Base to Center (in) 3.375
D - Head Diameter (in) 2.025
C - Thread Depth (in) 1.875
Thread Size 7/8-14
Ultimate Radial Static Load Capacity (lbs) 34,500
CAD 模型
询价
请确保已安装此软件。

产品选择

商品描述

Body - 4340 alloy steel per AMS 6415 - heat treated - cadmium plated.
Ball - 440C stainless steel per AMS 5630 - heat treated.
Race - 17-4 PH stainless steel per AMS 5643 - heat treated.
PTFE Liner - (AT 3200) Permanently bonded to race inside diameter, qualified to SAE-AS81820 Type A.
Temperature range: -65°F to +325°F.
No load rotational breakaway torque can be varied to meet specific application requirements.
Keyslots are available. Units are supplied without keyslots. When a keyslot is required, specify by adding suffix "K". Ex.: ASWK-3T.
As applicable, keyslots will conform to SAE-AS81935/3 or NAS 559.
Rod End Bearings listed are manufactured to conform to the dimensions, materials, and configurations of SAE-AS81935/2, and are approved for procurement under this specification.
