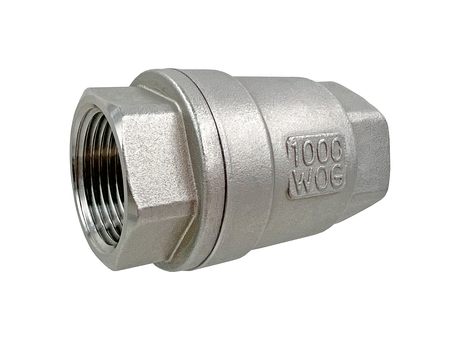

1 1/2" Stainless Spring Check Valve, NPT
Stainless Spring Check Valves
| Manufacturer | Valworx |
|---|---|
| Description | 1 1/2" Stainless Spring Check Valve, NPT |
| Manufacturer Part Number | 549812 |
| Buy Now | https://www.valworx.com/1-12-spring-check-valve |
| Product Page | https://www.valworx.com/1-12-spring-check-valve |
| Type | 2-Way |
| Pipe Size | 1 1/2" |
| Port Size | Full port, 1.50 inch orifice, Cv 32.0 |
| Pressure (Max) | 1000 PSI |
| Cracking Pressure | 0.6 PSI |
|---|---|
| Temperature | -13 to 356 °F (-25 to 180 °C) |
| Body/End Caps | ASTM 316 stainless steel (CF8M) |
| Spring | ASTM 316 stainless steel |
| Stem/Dsic | ASTM 316 stainless steel (CF8M) |
| Plate Washer/Nut | ASTM 304 stainless steel |
| Disc Seat | Viton |
| Body Seals | PTFE |
产品选择
商品描述
Stainless steel check valves are typically used to prevent unwanted backflow for water, air, oil and other media compatible with the materials of construction. Suitable for vertical installation or horizontal where self-draining is not required. Concentric spring loaded design reduces water hammer. Viton seats and PTFE seals.
Full Port for Unrestricted Flow
Stainless steel body
Stainless steel spring & disc
Viton disc seat
PTFE seals
NPT threaded ends
