2" Pneumatic/Manual Butterfly Valve, Lug, EPDM, Double Acting

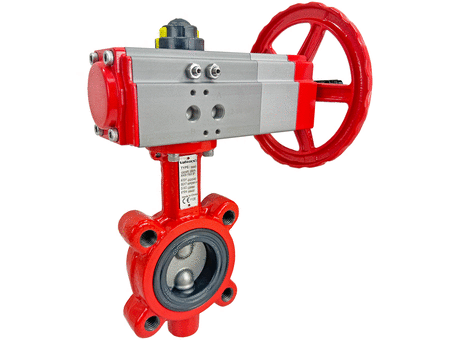

Butterfly Valves- Lug Style
| Manufacturer | Valworx |
|---|---|
| Description | 2" Pneumatic/Manual Butterfly Valve, Lug, EPDM, Double Acting |
| Manufacturer Part Number | 527402 |
| Buy Now | https://www.valworx.com/butterfly-valve-2-lug-epdm-pneumatic-manual-double-acting |
| Product Page | https://www.valworx.com/butterfly-valve-2-lug-epdm-pneumatic-manual-double-acting |
| Type | Pneumatic/Manual Lug Butterfly Valve- Double Acting |
| Cycle Time | Approx. 1/1 second open/close per 90° rotation |
| Pipe Size | 2 inch Lug design |
| Pressure Rating | 29 inHg vacuum to 230 PSI |
| Valve Temperature Range | 0 to 248°F (-18 to 120°C) |
| Actuator Temperature Range | -4 to 176 °F (-20 to 80 °C) |
| Valve Body | Ductile iron, epoxy coating (seat facing acts as flange gasket) |
|---|---|
| Air Pilot Pressure | 80-120 PSI |
| Air Connections | 1/4" NPT (plus NAMUR pad for solenoid valve) |
| Actuator Seals | NBR |
| Enclosure Protection | IP67 Weatherproof |
| Suitable Flanges | ANSI /ASME 125/150, EN1092 PN10, PN16, BS10 Table D, Table E, JIS B2239 10K, 16K |
| Disc | 316 stainless steel |
| Disc Seat/Liner | EPDM |
| Flow Capacity | Cv 124 (Cv = number of GPM of 60 °F water at 1 psi pressure drop) |
| Shaft Seals | EPDM V-ring |
| Upper/Lower Stem | SS420 |
