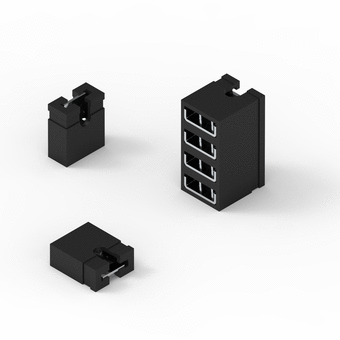

Board To Board - Jumper - 2.54 mm
| Manufacturer | WÜRTH ELEKTRONIK |
|---|---|
| Description | Jumper with test point_2.54 mm |
| Part Number | 60900213421 |
| Insulator Material | PBT |
| Insulator Colour | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Stamped |
| Pitch | 2.54 (mm) |
| Quality Class | 25 Mating cycles |
| Operating Temperature | -40 °C up to +125 °C |
| Insulator Flammability Rating | UL94 V-0 |
| Rated Current (A) |
| Rated Current UL (A) | 3 |
|---|---|
| Working Voltage (VAC) | |
| Working Voltage UL (VAC) | 250 |
| Withstanding Voltage (KVAC/min) | |
| Withstanding Voltage UL (KVAC/min) | 0.5 |
| Contact Resistance (mOHM) | |
| Contact Resistance UL (mOHM) | 20 |
| Insulation Resistance | >1000 (MΩ) |
| UL | E323964 |
| Compliance | RoHS / Lead free |
| Packaging | Bag |
| Orientation 1 | Straight |
| Gender 1 | Jumper |
